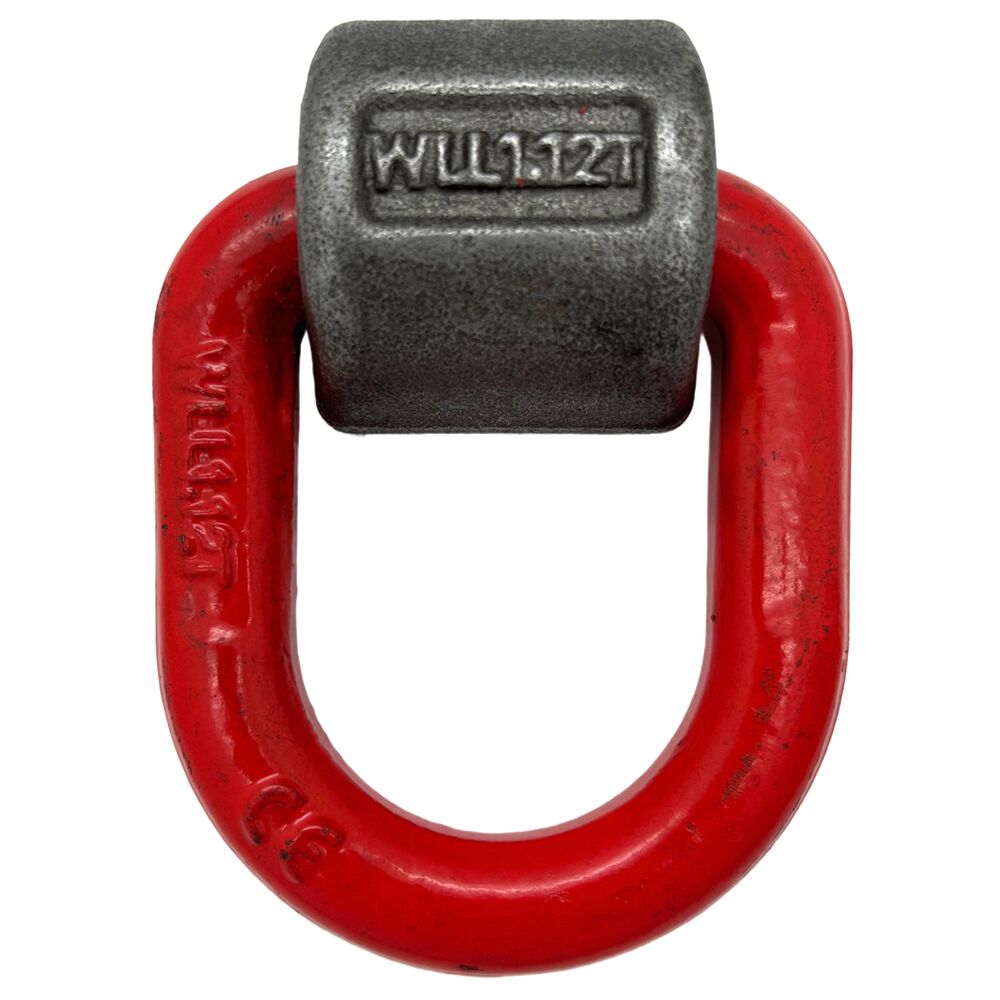

1.12ton WLL Weld On Lashing D Ring Grade 80
In stock
SKU: EBHW028
Grade 80 Weld On Lashing Link High Tensile Steel
These lashing d rings conform to EN12640 and have a 2:1 safety factor, they are WLL and CE marked. The ring pivots 180 degrees
To achieve full load these rings must be welded in accordance to DIN5817 resp 15429 by a qualified welder to EN287-1
Drawing Sizes
| A | 40mm |
| B | 80mm |
| D | 13mm |
| H | 40mm |
| M | 35mm |
| WLL | 1.12ton |
£7.19
£5.99
