Galvanised Rigging Screws Jaw/Jaw

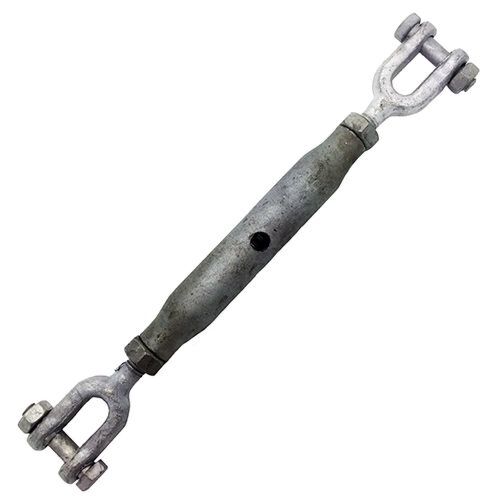

Hot dipped galvanised steel rigging screw with jaw and jaw ends

Come complete with locking nuts to secure once in place, these traditional rigging screws are commonly used with boat rigging, yachting and any application where a tensioner is required

Both jaws come with removable clevis pins

These rigging screw have opoosite handed threads so both end screw outwards or inwards at the same time, simply rotate the central body

Avaibale in diameters 6mm-24mm

In stock
Grouped product items
Product A (mm) B (mm) L (mm) D (mm) L1 Open (mm) L1 Closed (mm) SWL (Kgs) PRICE Qty
6mm Galvanised Rigging Screw Jaw/Jaw 7 16 100 6 260 185 150
£4.13 £3.44
8mm Galvanised Rigging Screw Jaw/Jaw 9 21 108 8 283 206 200
£4.67 £3.89
10mm Galvanised Rigging Screw Jaw/Jaw 9 20 125 10 322 228 300
£5.18 £4.32
12mm Galvanised Rigging Screw Jaw/Jaw 13 26 195 12 463 316 500
£9.59 £7.99
16mm Galvanised Rigging Screw Jaw/Jaw 19 32 229 16 561 390 750
£16.42 £13.68
20mm Galvanised Rigging Screw Jaw/Jaw 20 38 270 20 658 457 1200
£30.60 £25.50
22mm Galvanised Rigging Screw Jaw/Jaw 24 45 294 22 722 503 1700
£43.54 £36.28
24mm Galvanised Rigging Screw Jaw/Jaw 32 63 359 24 822 556 2200
£52.97 £44.14
Show Price without VAT
