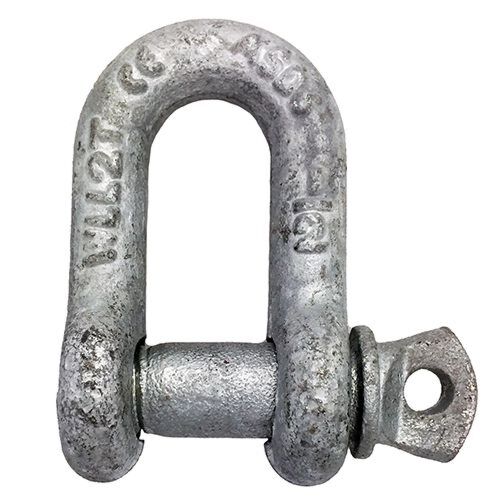

Galvanised Steel Lifting D Shackles US Federal RR-C-271

US Federal RR-C-271 specification D shackle, drop forged for maximum strength

6:1 safety factor

Working Load Limit and CE stamped for guidance, this shackle has a totally removable shackle pin

In stock

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

Grouped product items
Product	E (mm)	d (inches)	D (inches)	S (inches)	W (inches)	SWL Tonnes	PRICE	Qty
6mm 0.50ton US Fed D Shackle	17	1/4"	5/16"	7/8"	15/32"	0.50	£1.03 £0.86
8mm 0.75ton US Fed D Shackle	22	5/16"	3/8"	1-1/32"	17/32"	0.75	£1.31 £1.09
10mm 1.00ton US Fed D Shackle	25	3/8"	7/16"	1-1/4"	21/32"	1.00	£1.68 £1.40
11mm 1.50ton US Fed D Shackle	25	7/16"	1/2"	1-7/16"	23/32"	1.50	£1.87 £1.56
12mm 2.00ton US Fed D Shackle	29	1/2"	5/8"	1-5/8"	13/16"	2.00	£2.64 £2.20
16mm 3.25ton US Fed D Shackle	39	5/8"	3/4"	2"	1-1/16"	3.25	£4.51 £3.76
18mm 4.75ton US Fed D Shackle	46	3/4"	7/8"	2-3/8"	1-1/4"	4.75	£8.11 £6.76
22mm 6.50ton US Fed D Shackle	53	7/8"	1"	2-13/16"	1-7/16"	6.50	£10.13 £8.44
25mm 8.50ton US Fed D Shackle	60	1"	1-1/8"	3-3/16"	1-11/16"	8.50	£14.47 £12.06
28mm 9.50ton US Fed D Shackle	67	1-1/8"	1-1/4"	3-9/16"	1-13/16"	9.50	£21.34 £17.78
30mm 12.00ton US Fed D Shackle	78	1-1/4"	1-3/8"	3-15/16"	2-1/32"	12.00	£26.11 £21.76
