KL600 Zip-Clip Rize Steel Wire Rope Grip (6mm Wire)

Installation guide

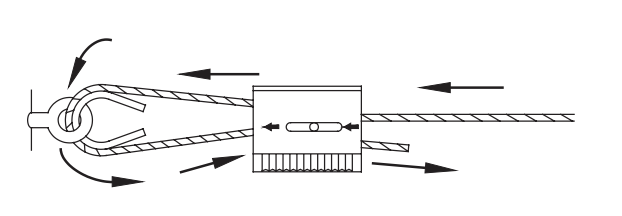

• Cut wire to desired length for the drop required
• Pass one end of the wire through the zip-clip in the direction of the arrow on the Zip-Clip Rize body and draw through enough wire to go around your fixing point
• Pass the wire end back through the zip-clip leaving at least 15cm of free wire protruding
• At the other end again pass the wire through the zip-clip in the direction of the arrow
• Pass the free end of wire around your suspension or through your fixing and back through the zip-clip leaving 15cm of wire protruding
• Always confirm engagement of the zip-clip on the wire by pushing the pin in the opposite direction to the arrows indicated
