Stainless Steel Drop In Anchors

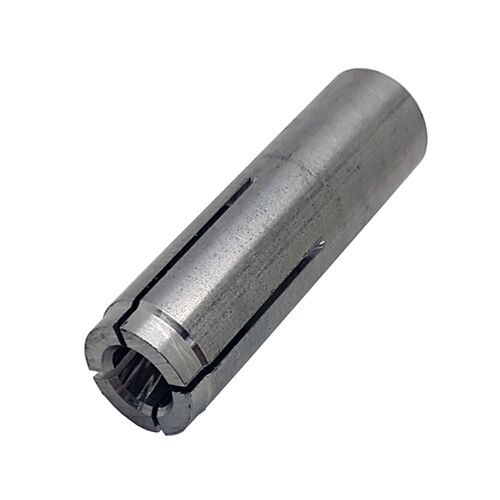

A4 - AISI 316 Stainless Steel Drop In Anchors

Deformation controlled drop in anchor which is suitable for use in non-cracked concrete between C20/25 and C50/60

Internal thread suits threaded studs or bolts, M6, M8, M10, M12 and M16 diameters available

In stock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Grouped product items

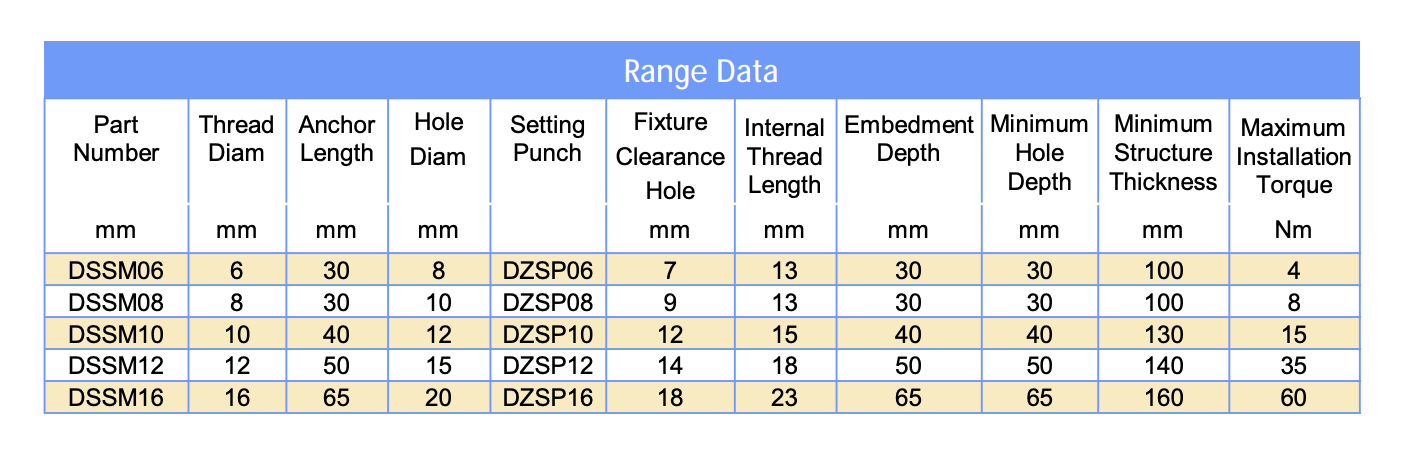

Product	Drill Hole Diameter (mm)	Thread Diam (mm)	Installation Torque (Nm)	Overall Anchor Length (mm)	Setting Punch Required	PRICE
M6 Anchor	8	6	4	30	DZSP06	£1.30 £1.08
M8 Anchor	10	8	8	30	DZSP08	£1.79 £1.49
M10 Anchor	12	10	15	40	DZSP10	£2.81 £2.34
M12 Anchor	15	12	35	50	DZSP12	£5.23 £4.36
M16 Anchor	20	16	60	65	DZSP16	£9.59 £7.99
