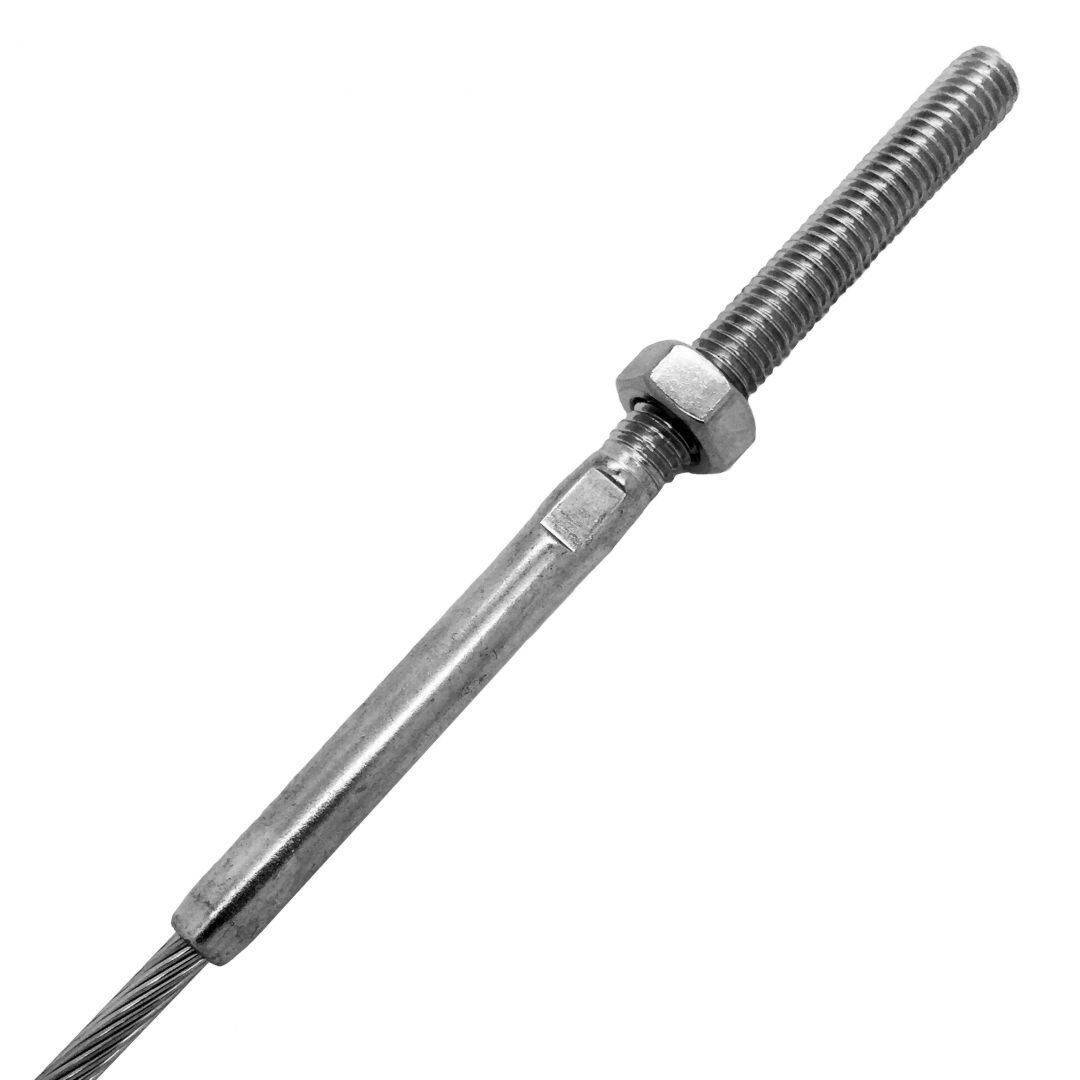

Stainless Steel Wire Rope Swage Stud Terminals - Left Handed

We offer a range of swage stud fittings, these Swage Stud Terminals are very popular and made from A4-AISI 316 Marine Grade Stainless Steel.

Featuring a polished finish, they are left-handed metric coarse threaded. Ideal for making steel wire balustrade systems with steel posts.

These swage stud fittings need to be Hydraulically Crimped or Swaged onto the Steel Wire Rope. The come with 1 hex nut included.

They are available for use with a wide range of wire rope diameters, including 2mm, 2.5mm, 3mm, 4mm, 5mm and 6mm diameter wire.

Right-handed stud versions are also available.

In stock
Grouped product items
Product A (mm) L (mm) D (mm) G (mm) L2 (mm) L1 (mm) Suit Wire Diameter (mm) PRICE Qty
2mm Left Handed Swage Stud Terminal (M5 Stud) 2 86 5.5 5 30 40 2
£1.60 £1.33
2.5mm Left Handed Swage Stud Terminal (M5 Stud) 2.5 86 5.5 5 30 40 2.5
£1.61 £1.34
3mm Left Handed Swage Stud Terminal (M6 Stud) 3.3 80 6.35 6 32 40 3
£1.70 £1.42
4mm Left Handed Swage Stud Terminal (M8 Stud) 4.2 102 7.5 8 40 52 4
£1.99 £1.66
5mm Left Handed Swage Stud Terminal (M10 Stud) 5.2 130 9 10 57 63 5
£2.69 £2.24
6mm Left Handed Swage Stud Terminal (M12 Stud) 6.75 142 12.5 12 63 68 6
£4.79 £3.99
8mm Left Handed Swage Stud (M16 Stud) 9 200 17 16 75 100 8
£14.39 £11.99
10mm Left Handed Swage Stud (M16 Stud) 11 215 18 16 90 100 10
£19.19 £15.99
Show Price without VAT

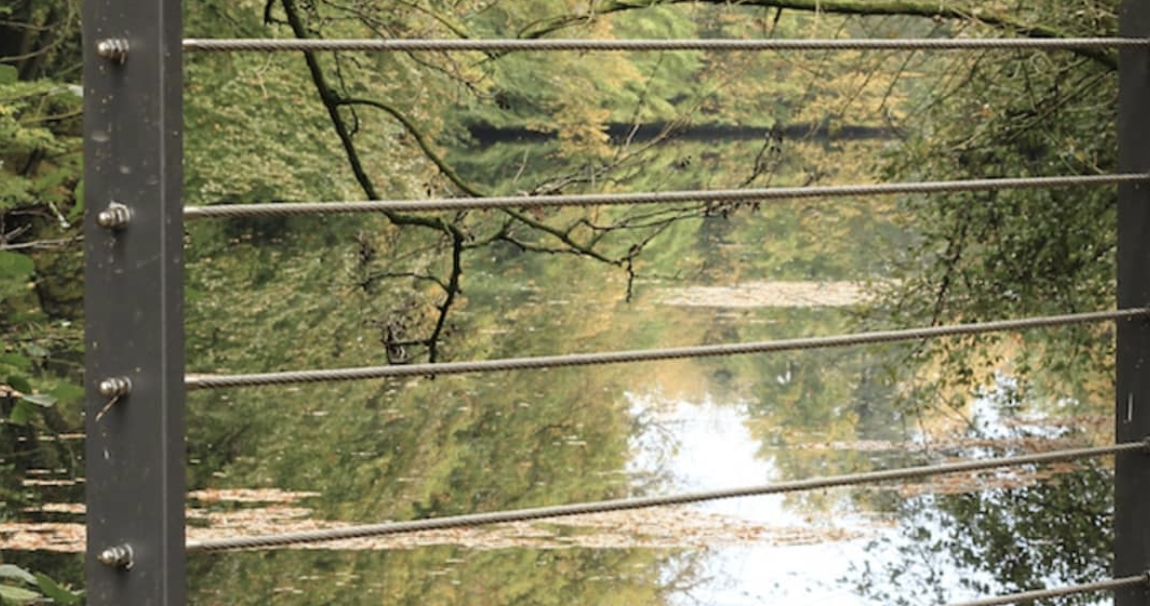

Left handed stud swage terminals, often used on the opposite end to a right handed version, with both hands being opposite handed threads it allows for balustrade wires to be screwed inwards or outwards at the same time




Steel wire rope swaging service

We have an experienced team of steel wire rope riggers who can professionally press your swage terminals for you - get in touch for a quote
